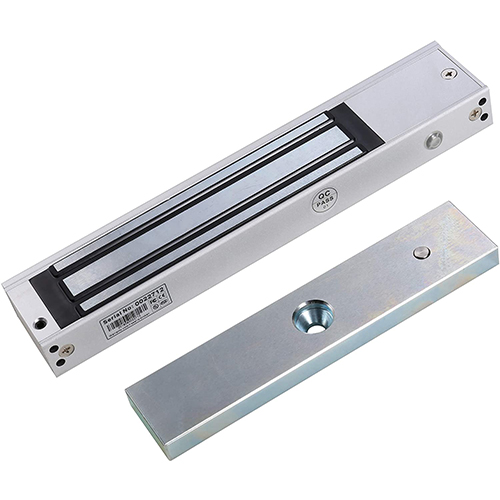

Item Name: | Magnetic Lock, Conceal Mounted |
Material: | Aluminum Alloy |
Suitable: | Wooden door, Glass door, Metal door, Fireproof door,etc. |
Holding Force: | 280kg/600lbs |
Working Voltage/Current: | DC12V/500mA ±10% |

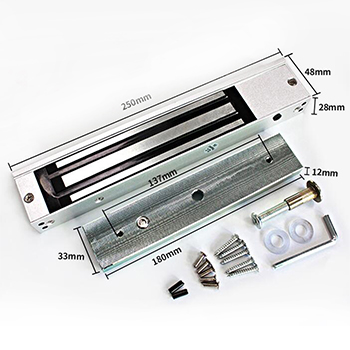

Size: | 250Lx48.5Wx25H mm |
Armature Plate Dimension: | 180Lx38Wx11H mm |
Weight: | 1.8kg |
Optional: | 24V//250mA ±10% |
Feature:
Use magnetic power to lock the door, 280kgs (600lbs) holding force.
Built-in reverse current protection device (MOV).
Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant.
Good quality and durable to use.
Can be opened by push button, remote controller, etc.
Fit for wooden door, metal door, glass door, fireproof door, etc.
Specification:
Holding force: 280kgs
Voltage: DC 12V
Current: 380-430mA
Working temperature: -10 to 55 Celsius degree (14 to 131 Fahrenheit degree)
Humidity: 0 to 95%
Working mode: power-on to lock

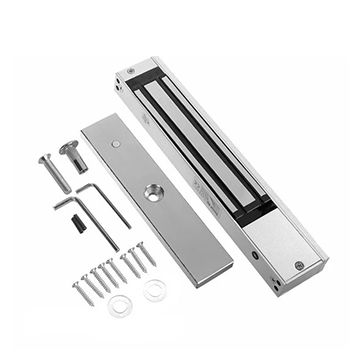

Packing list:
1 * Electronic magnetic lock
1 * Armature plate
1 * Bag of installation kit
1 * Pad
